Introduction
PID Control in PLC plays a key role in modern industrial automation. It helps machines maintain stable and accurate process conditions without constant human adjustment. Many industries rely on PID control to keep temperature, pressure, flow, and liquid level within the required limits. As a result, production becomes more reliable, product quality improves, and energy waste decreases.
Every industrial process faces small changes during operation. A heater may produce more heat than required. A pump may deliver extra flow. A motor may slow down because of an increased load. These changes affect the final output. Therefore, industries need a control method that can respond quickly and maintain stability. This is where PID Control in PLC becomes valuable.
A programmable logic controller can perform many automation tasks. However, simple ON/OFF control is not enough for every application. Some processes require smooth and continuous adjustment instead of sudden switching. For example, a chemical reactor needs an accurate temperature throughout production. A water treatment plant must maintain a constant tank level. Likewise, a food processing line requires stable pressure to ensure product quality. In these situations, PID control provides much better results than basic switching logic.
The term PID stands for Proportional, Integral, and Derivative. These three control actions work together to reduce errors between the desired value and the actual process value. Each action has a unique purpose. Together, they create a balanced control system that reacts quickly while maintaining long-term stability.
Many beginners think PID control is difficult because it involves mathematical concepts. In reality, understanding the basic idea is much easier than most people expect. The controller simply compares the desired process value with the actual process value. It then calculates how much correction is needed. Finally, it sends an updated command to the output device. This sequence repeats continuously, allowing the process to stay close to the target value.
Today, PID controllers are used in almost every industrial sector. Manufacturing plants, pharmaceutical factories, food processing facilities, power stations, oil refineries, and water treatment systems all depend on accurate process control. Without PID control, many automated systems would struggle to deliver consistent performance.
Modern PLC platforms include built-in PID instructions. These functions simplify controller programming and reduce engineering time. Instead of creating complex mathematical calculations from scratch, engineers configure a PID block and adjust a few important parameters. After proper tuning, the system can achieve fast response, excellent stability, and reliable operation.
This guide explains PID Control in PLC in simple language. You will learn how it works, why industries use it, how each control action affects the process, and where PID control delivers the best results. Real industrial examples will also help you understand the practical value of this powerful automation technique.

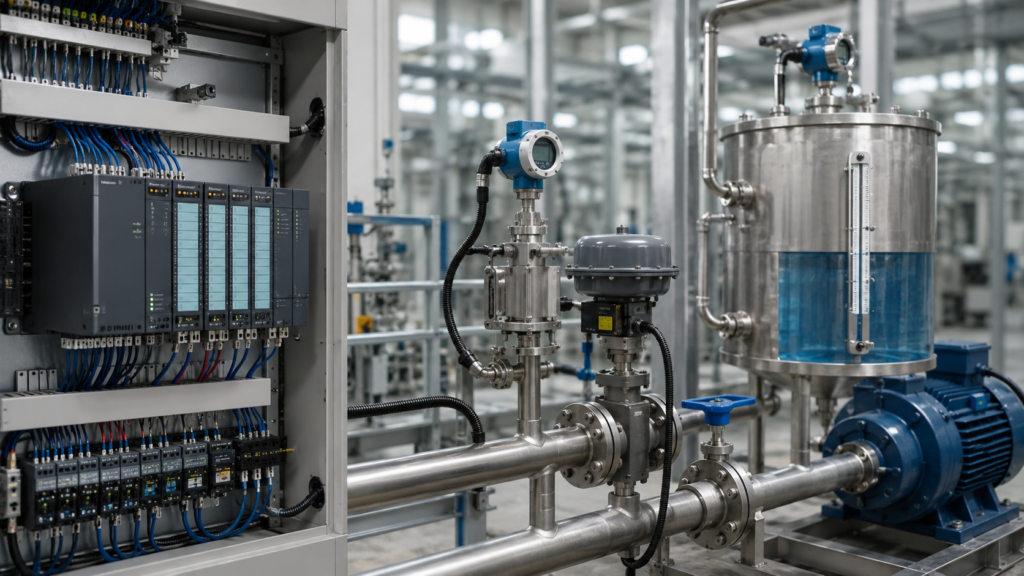

What Is PID Control in PLC?
PID Control in PLC is an advanced control method that automatically keeps an industrial process close to a desired operating value. Instead of switching equipment fully ON or OFF, it continuously adjusts the output according to changing process conditions. This continuous adjustment improves accuracy, reduces fluctuations, and creates smoother system performance.
Imagine a water tank that must always remain at seventy percent capacity. Water enters through a pump while another pipe continuously removes water from the tank. If the pump only turns ON and OFF, the water level constantly rises and falls. The tank never stays exactly where it should. However, when a PLC uses PID control, the pump speed changes smoothly according to the current water level. As a result, the level remains much closer to the desired value.
The same principle applies to many industrial applications. A furnace must maintain the correct temperature. A compressor must deliver stable pressure. A mixing process must control liquid flow accurately. Each system experiences changing operating conditions. Therefore, the controller must react continuously instead of waiting for large errors to appear.
Every PID control system begins with a desired operating value called the Setpoint. This is the target condition that engineers want to maintain. At the same time, a sensor measures the current process condition. This measured value is known as the Process Variable.
The PLC constantly compares these two values. If they match, no correction is required. However, if the measured value moves away from the target, the controller immediately calculates a correction. It then changes the output signal sent to the actuator. This adjustment reduces the error and brings the process back toward the desired operating condition.
Unlike simple control systems, PID control does not react in only one way. Instead, it evaluates both the size of the error and how the error changes over time. This intelligent behavior allows the controller to make smooth and stable corrections rather than sudden movements.
For example, consider an industrial oven operating at 180°C. Opening the oven door allows heat to escape, causing the temperature to drop. The temperature sensor immediately detects this change and sends new information to the PLC. The PID controller calculates the difference between the desired temperature and the actual temperature. It then increases the heater output gradually until the oven returns to the correct temperature. Once stability is restored, the controller automatically reduces the heater output to prevent overheating.
This continuous cycle happens many times every second. Operators rarely notice the adjustments because the controller performs them automatically in the background.
One of the biggest advantages of PID Control in PLC is its ability to respond smoothly to disturbances. Industrial environments constantly experience changes. Material properties vary. Environmental temperatures change. Equipment wears over time. Production rates increase or decrease. Despite these challenges, a properly tuned PID controller keeps the process operating within acceptable limits.
Modern PLC software also makes PID implementation much easier than it was in the past. Most automation platforms include ready-to-use PID function blocks. Engineers simply connect the required inputs, define operating parameters, and tune the controller according to the process requirements. This approach saves development time while improving reliability.
Understanding this basic concept provides a strong foundation for learning the remaining parts of PID control. Once you understand how the controller compares values and continuously adjusts outputs, the individual Proportional, Integral, and Derivative actions become much easier to understand.
Why PID Control Is Important in Industrial Automation
Industrial automation depends on accuracy. Every process must produce the same result again and again. Even a small change in temperature, pressure, flow, or liquid level can affect product quality. Therefore, industries need a control method that reacts quickly and keeps every process stable. PID Control in PLC provides that level of precision.
Many industrial systems cannot rely on simple ON/OFF control. A heater that only switches fully ON or fully OFF creates large temperature swings. Likewise, a pump that starts and stops repeatedly causes unstable liquid levels. These sudden changes increase equipment wear and reduce production quality. However, PID control adjusts the output smoothly. As a result, the process remains much closer to the desired operating condition.
Modern factories also operate with high production targets. Every minute of downtime costs money. Therefore, companies invest in automation systems that improve reliability and reduce manual intervention. A properly configured PID controller helps machines respond to changing conditions automatically. Operators spend less time making corrections because the PLC continuously maintains process stability.
Another important advantage is product consistency. Customers expect every product to meet the same quality standards. For example, a food factory must cook every batch at the correct temperature. A pharmaceutical company must maintain precise mixing conditions. Likewise, a chemical plant must control pressure and flow throughout production. PID Control in PLC helps maintain these critical values with high accuracy.
Energy efficiency is another major benefit. Equipment consumes more energy when it operates inefficiently. For instance, a motor running at full speed all the time wastes electricity. Similarly, a heating system that constantly overshoots the required temperature increases energy costs. A PID controller adjusts the output according to actual process demand. Therefore, machines use only the required amount of power. This approach reduces operating costs while improving overall efficiency.
Equipment protection also improves with proper process control. Frequent starting and stopping create mechanical stress on motors, pumps, valves, and compressors. Over time, this stress shortens equipment life and increases maintenance costs. However, smooth output adjustments reduce unnecessary movement and protect valuable industrial assets.
Industrial environments also experience many unexpected disturbances. A change in raw material quality can affect production. Ambient temperature may rise during the day. Production demand may increase suddenly. Even small pressure changes inside a pipeline can influence the final process. PID Control in PLC detects these changes and responds automatically before they become serious problems.
Safety is another reason why industries rely on PID control. Many manufacturing processes operate under strict safety limits. Excessive pressure, high temperature, or unstable liquid levels can damage equipment and create dangerous situations. A properly tuned PID controller helps maintain safe operating conditions by reacting before the process moves too far from the target value.
Modern industrial automation also requires continuous production. Machines often operate twenty-four hours a day without interruption. Human operators cannot monitor every process every second. Therefore, automated control systems perform this task continuously. The PLC receives information from sensors, calculates corrections, and updates the outputs without stopping. This continuous operation improves production reliability and reduces the possibility of human error.
In addition, modern PLC platforms make PID implementation easier than ever before. Most industrial controllers include ready-to-use PID function blocks. Engineers only need to configure process values, controller parameters, and output limits. After proper tuning, the controller performs complex calculations automatically. This reduces programming time while improving system performance.
Digital transformation has also increased the importance of advanced process control. Many factories now connect PLCs with SCADA systems, HMIs, cloud platforms, and industrial networks. These connected systems provide real-time monitoring and detailed performance data. A stable PID controller ensures that the information displayed on these monitoring systems accurately reflects the actual process condition.
For these reasons, PID Control in PLC has become one of the most valuable technologies in industrial automation. It improves quality, increases efficiency, reduces maintenance costs, protects equipment, supports continuous production, and helps industries maintain safe operating conditions. As automation continues to grow, PID control will remain an essential part of modern manufacturing systems.
How PID Control Works
Understanding PID Control in PLC becomes much easier when you look at the complete control cycle. The controller follows a continuous sequence of actions. It measures the process, compares the results, calculates the required correction, and updates the output. This cycle repeats continuously throughout machine operation.
Every PID control system begins with a desired operating value called the Setpoint. The setpoint represents the target condition that the process should maintain. For example, a water tank may require a level of 75 percent. A furnace may require a temperature of 200 degrees Celsius. A pressure system may require a constant pressure of six bar. The setpoint remains the reference value for the controller.
Next, an industrial sensor measures the actual process condition. This value is called the Process Variable. The sensor continuously sends updated information to the PLC. Because the PLC receives fresh data every control cycle, it always knows the current process condition.
The controller then compares the process variable with the setpoint. If both values match, the process operates correctly and only minor adjustments are required. However, if the measured value differs from the target value, the PLC detects an error.
This error becomes the starting point for every PID calculation. A larger error usually requires a stronger correction. A smaller error requires a lighter adjustment. Instead of making sudden changes, the controller calculates the most suitable response based on the current operating conditions.
After calculating the required correction, the PLC sends a new output signal to the final control device. This device may be a control valve, a variable frequency drive, a heater, a pump, or another actuator. The actuator immediately changes the process according to the new command.
Once the output changes, the sensor measures the process again. The PLC receives updated information and performs another calculation. This continuous feedback allows the controller to respond quickly whenever operating conditions change.
For example, imagine a large industrial water tank. The desired level is eighty percent. As production increases, more water leaves the tank. Consequently, the water level begins to decrease. The level sensor detects the change and sends the new value to the PLC. The PID controller calculates the difference between the target level and the actual level. It then increases the pump speed gradually instead of switching it fully ON. As fresh water enters the tank, the level rises smoothly until it reaches the required value. Finally, the controller reduces the pump speed to maintain stability without creating unnecessary fluctuations.
The same process occurs inside a temperature control system. Suppose an industrial oven operates at a fixed temperature. When cold material enters the oven, the internal temperature decreases. The temperature sensor immediately reports the change to the PLC. The controller increases heater output in a controlled manner. As the oven approaches the desired temperature, the controller gradually reduces heater power. This smooth adjustment prevents overheating while maintaining consistent product quality.
One of the biggest strengths of PID Control in PLC is continuous feedback. The controller never assumes that one correction is enough. Instead, it keeps checking the process and makes new adjustments whenever necessary. Therefore, the process remains stable even when operating conditions change throughout the day.
Unlike basic control systems, PID control also predicts future process behavior. It does not only react to current errors. Instead, it analyzes how the process changes over time. This ability helps reduce overshoot, improve stability, and create faster response during demanding industrial applications.
Although the internal calculations appear complex, most modern PLC software performs them automatically. Engineers only configure the PID function block, define the process values, and tune the controller parameters. After commissioning, the PLC continuously performs every calculation in the background while operators simply monitor system performance.
This intelligent control cycle explains why PID Control in PLC is widely used across manufacturing, chemical processing, food production, pharmaceutical plants, water treatment facilities, oil and gas operations, and many other industrial sectors.
The Three Components of PID Control
Every PID Control in PLC system uses three control actions. These actions work together to keep an industrial process stable. Although each action has a different purpose, they continuously support one another during operation. When engineers understand these three components, tuning a PID controller becomes much easier.
The three components are Proportional, Integral, and Derivative control. Together, they create a balanced control strategy that reacts quickly while maintaining long-term stability.
Understanding the Proportional (P) Action
The proportional action is the first part of PID Control in PLC. It reacts immediately when the process moves away from the desired value.
The controller first calculates the difference between the setpoint and the process variable. This difference is called the error. The proportional action then produces an output based on the size of that error.
A large error creates a stronger response. A small error creates a smaller response. This allows the controller to react quickly whenever the process changes.
Imagine an industrial water tank that should remain at 80 percent. If the level suddenly drops to 60 percent, the controller detects a large error. Therefore, it increases the pump output significantly. As the water level rises closer to the target, the controller gradually reduces the pump speed.
This simple reaction makes proportional control very fast. However, proportional control alone cannot completely remove the error in many industrial processes. A small difference often remains after the system stabilizes. Engineers call this the steady-state error.
For this reason, industrial controllers rarely use proportional action by itself.
Benefits of Proportional Control
Proportional control improves response speed and helps the process react immediately to changing conditions.
It also reduces large fluctuations during normal operation. As a result, the process reaches the desired operating range much faster than basic ON/OFF control.
Because of its quick response, proportional control forms the foundation of every PID controller.
Limitations of Proportional Control
Although proportional control reacts quickly, it cannot eliminate every error.
A small difference between the desired value and the actual value usually remains after stabilization.
Increasing proportional gain too much creates another problem. The process may become unstable and begin to oscillate continuously.
Therefore, engineers normally combine proportional control with the integral and derivative actions.
Understanding the Integral (I) Action
The integral action solves the problem that proportional control cannot fix.
Instead of looking only at the current error, the integral action also considers how long the error has existed.
If the process stays below the target for an extended period, the controller slowly increases the correction. Likewise, if the process remains above the target, it gradually reduces the output.
This continuous correction removes the remaining steady-state error.
Consider a furnace operating at 200°C. The proportional controller may stabilize the temperature at 198°C. Although this difference is small, the process is still below the desired value.
The integral action recognizes that the error continues over time. Therefore, it slowly increases the heater output until the furnace reaches exactly 200°C.
Once the error disappears, the integral action stops adding additional correction.
Benefits of Integral Control
Integral control improves long-term accuracy.
It removes steady-state error and helps the process reach the exact operating target.
This feature is especially valuable in temperature control, pressure control, liquid level control, and flow control applications where precision is important.
Limitations of Integral Control
Integral action should always be adjusted carefully.
If the controller reacts too aggressively, the output may continue increasing even after the process reaches the target.
Consequently, the system may overshoot the desired value before stabilizing.
This condition increases settling time and may reduce overall system performance.
Proper tuning prevents these problems.
Understanding the Derivative (D) Action
The derivative action behaves differently from the other two control actions.
Instead of focusing only on the current error, it studies how quickly the error changes.
This allows the controller to predict future process behavior before large deviations occur.
As the temperature approaches the setpoint, the derivative action detects the rapid increase.
Instead of waiting until the target is exceeded, it begins reducing the heater output early.
Because of this prediction, the controller prevents excessive overshoot.
The process reaches the target smoothly without unnecessary fluctuations.
Benefits of Derivative Control
Derivative control improves system stability.
It reduces overshoot and minimizes oscillations.
It also helps fast-moving industrial processes respond more smoothly.
Many complex manufacturing systems benefit from this predictive behavior.
Limitations of Derivative Control
Derivative control responds strongly to noisy sensor signals.
Small measurement fluctuations may create unnecessary output changes.
Therefore, engineers often reduce derivative gain or filter noisy sensor signals before enabling derivative control.
Not every industrial process requires strong derivative action.
Some slow systems operate successfully with only proportional and integral control.
How the Three Actions Work Together
The real strength of PID Control in PLC comes from combining all three control actions.
The proportional action reacts immediately to the current error.
The integral action removes any remaining long-term error.
Meanwhile, the derivative action predicts future changes and improves stability.
Each action performs a different task.
Together, they create a balanced control system that reacts quickly while maintaining accurate process control.
Without proportional action, the system would respond too slowly.
Without integral action, small errors would remain permanently.
Therefore, modern industrial automation depends on the cooperation of all three control actions rather than relying on only one.
Why Balanced PID Tuning Matters
A PID controller delivers the best performance only after proper tuning.
Engineers must balance all three control actions according to the characteristics of the process.
An aggressive controller may respond quickly but become unstable.
A conservative controller may remain stable but react too slowly.
The objective is to find the balance between speed, accuracy, and stability.
This balance allows PID Control in PLC to perform efficiently under changing industrial conditions.
Understanding the PID Control Loop
Every PID Control in PLC system follows a continuous control loop. This loop allows the controller to monitor the process, calculate corrections, and maintain stable operation without stopping. The cycle repeats many times every second. Because of this continuous feedback, the process remains close to the desired operating condition.
Although the calculations happen in the background, the control loop follows a simple sequence. Each step depends on the previous one, and every component plays an important role in maintaining process stability.
Step 1 – The Process Begins
Every industrial process starts with a specific operating target.
This target may represent a desired temperature, liquid level, pressure, speed, or flow rate. Engineers define this value before the machine begins operating.
The desired operating value is known as the Setpoint.
For example, a storage tank may require a water level of 75 percent. Likewise, an industrial oven may need to maintain a temperature of 180°C throughout production.
The controller uses this value as its primary reference.
Step 2 – Sensors Measure the Process
The next stage involves process measurement.
Industrial sensors continuously monitor the actual operating condition. These sensors provide real-time information to the PLC.
Different processes require different sensor types.
A temperature sensor measures heat.
A pressure transmitter measures pressure.
A flow sensor measures the movement of liquids or gases.
Because sensors provide continuous updates, the PLC always knows the current condition of the process.
Step 3 – The PLC Calculates the Error
Once the PLC receives the sensor data, it compares the measured value with the setpoint.
If both values match, the process continues normally.
However, industrial processes rarely remain perfectly stable.
Small disturbances occur throughout production.
Therefore, the measured value often differs from the desired value.
The difference between these two values is called the error.
This error becomes the starting point for every control decision.
A larger error requires stronger correction.
A smaller error requires only a minor adjustment.
Step 4 – PID Calculation Begins
After detecting the error, the PLC activates the PID algorithm.
The controller evaluates the process using the proportional, integral, and derivative actions.
Each action contributes different information.
The proportional action reacts to the current error.
The integral action considers how long the error has existed.
The derivative action predicts future changes by analyzing the speed of the process.
The PLC combines all three actions into one final output value.
This calculation happens automatically within milliseconds.
Step 5 – The Controller Updates the Output
The calculated output is sent to the final control device.
This device may be a control valve, a variable frequency drive, a heater, or another actuator.
Instead of making sudden changes, the controller adjusts the output smoothly.
For example, the PLC may increase motor speed gradually.
Likewise, it may slowly open a valve or reduce heater power.
Smooth adjustments improve stability and reduce unnecessary equipment stress.
Step 6 – The Process Responds
Once the actuator receives the new command, the process begins changing.
The water level rises.
The temperature increases.
The pressure decreases.
The motor speed changes.
These adjustments move the process closer to the desired operating condition.
Because every industrial process responds differently, the controller continues monitoring the results.
Step 7 – Continuous Feedback
The control cycle does not stop after one correction.
Instead, the sensors immediately measure the updated process condition.
Fresh information returns to the PLC.
The controller performs another calculation.
It then sends another output command if necessary.
This continuous feedback loop repeats throughout machine operation.
As a result, PID Control in PLC maintains stable performance even when operating conditions change.
Input, Output, and Feedback in PID Control
Every PID controller depends on three important elements.
The first element is the process input.
The second element is the controller output.
The third element is continuous feedback.
These three elements work together to create automatic process control.
Without accurate feedback, the controller cannot make intelligent decisions.
Without a reliable output device, the calculated correction cannot influence the process.
Likewise, without correct input data, every calculation becomes inaccurate.
For this reason, engineers always select reliable sensors and properly calibrated instruments before commissioning a PID control system.
Process Input
The process input represents the current operating condition.
Industrial sensors measure this value continuously.
The PLC receives the latest information during every control cycle.
High-quality sensor data improves controller performance.
Poor measurements reduce overall accuracy.
Therefore, sensor selection plays an important role in every automation project.
Controller Output
The controller output represents the correction generated by the PID algorithm.
The PLC sends this signal directly to the final control element.
Depending on the application, the output may control motor speed, valve position, heater power, or pump capacity.
Smooth output adjustment improves both efficiency and equipment life.
Continuous Feedback
Feedback makes PID control different from simple automation systems.
Instead of making one correction and stopping, the controller continuously checks the process.
Every new measurement produces another calculation.
This continuous correction allows the system to remain stable despite changing operating conditions.
Because of this closed-loop operation, modern industrial automation achieves much higher accuracy than basic ON/OFF control.
Closed-Loop Control vs Open-Loop Control
Understanding the difference between these two control methods helps explain why PID Control in PLC performs so well.
An open-loop system operates without feedback.
The controller sends an output command but never checks the final result.
For example, a timer may run a pump for ten seconds regardless of the actual water level.
This method works for simple applications.
However, it cannot compensate for changing process conditions.
A closed-loop system operates differently.
The controller continuously receives feedback from sensors.
Most modern manufacturing plants prefer closed-loop control because it provides better product quality, improved efficiency, and greater operational reliability.
Why Continuous Feedback Improves Process Stability
Industrial processes rarely remain constant because raw material properties change, environmental conditions vary throughout the day, equipment performance gradually declines as components wear, and production demand continuously increases or decreases. Without continuous feedback, these variations can reduce process accuracy and affect overall system performance. However, PID Control in PLC continuously monitors every operating condition and immediately calculates the necessary corrections whenever a disturbance occurs. This fast and automatic response minimizes process variations, helping manufacturers maintain consistent product quality, reduce waste, and improve overall operational efficiency.
Industrial Example of a PID Control Loop
Consider a large chemical mixing tank that must maintain a constant liquid temperature throughout the production process. A temperature sensor continuously measures the actual temperature inside the tank and sends this information to the PLC, which compares it with the required setpoint. If the temperature drops after cold material enters the tank, the controller immediately detects the difference and the PID algorithm calculates the appropriate heater adjustment. Instead of switching the heater fully ON, the PLC increases the heater output gradually. As the liquid temperature approaches the target value, the controller slowly reduces heater power to prevent overshooting. Meanwhile, the sensor keeps providing updated measurements, allowing the PLC to repeat this control cycle continuously. This ongoing feedback and automatic correction keep the mixing process stable despite changing operating conditions, demonstrating why PID Control in PLC is an essential technology in modern industrial automation.
PID Tuning Methods
A PID controller performs well only after proper tuning. Even the best PLC cannot maintain accurate process control if the tuning parameters are incorrect. Therefore, engineers spend time adjusting the controller until the process responds smoothly and remains stable under different operating conditions.
PID tuning is the process of selecting suitable values for the proportional, integral, and derivative actions. These values determine how quickly the controller reacts, how accurately it removes errors, and how smoothly it reaches the desired operating condition.
There is no single tuning method that works for every industrial application. Every process behaves differently. A temperature control system responds much more slowly than a motor speed control system. Likewise, a liquid level process reacts differently from a pressure control loop. For this reason, engineers evaluate the process before selecting the most appropriate tuning approach.
Modern PLC software often provides automatic tuning features. These tools analyze the process and suggest suitable controller settings. Although automatic tuning saves time, experienced engineers usually fine-tune the parameters after testing the system under real operating conditions.
The objective of PID tuning is not simply to make the process respond faster. A well-tuned controller should also remain stable, minimize overshoot, reduce oscillations, and maintain accurate control during changing operating conditions.
Real-World Applications of PID Control in PLC
Today, PID Control in PLC is used in almost every industrial sector because it delivers accurate and reliable process control.
In manufacturing plants, PID controllers regulate furnace temperatures to ensure consistent product quality. In water treatment facilities, they maintain stable tank levels and control pump speeds according to system demand. Chemical industries use PID control to regulate pressure, flow, and mixing processes while maintaining safe operating conditions.
Food and beverage manufacturers rely on PID control to maintain precise cooking temperatures and consistent production quality. Pharmaceutical companies use it to control sensitive manufacturing processes where even small variations can affect the final product. Power generation plants also depend on PID controllers to regulate steam pressure, boiler temperature, and turbine performance.
These applications demonstrate why PID control has become one of the most trusted control strategies in modern industrial automation.
Conclusion
PID Control in PLC is one of the most important technologies in industrial automation. It helps industries maintain stable, accurate, and efficient process control under changing operating conditions. By combining proportional, integral, and derivative actions, the controller continuously corrects process errors while reducing fluctuations and improving overall system performance.
Whether the application involves temperature, pressure, flow, liquid level, or motor speed, a properly tuned PID controller provides reliable results and improves product quality. It also reduces energy consumption, protects equipment, and minimizes manual intervention.
Understanding the principles of PID Control in PLC gives beginners a strong foundation in process automation while helping experienced engineers optimize industrial systems more effectively. As manufacturing continues to adopt smarter automation technologies, PID control will remain an essential part of efficient and reliable industrial operations.
